VOGI EVO series of floor drains consist of 12 different models. Every version consist a different main body construction (horizontal, vertical or horizontal double). A trap (dry or wet) and telescope with "tile in" grate or a decorative 4mm stainless steel grate. Included in the set is a waterproof membrane.

about us.png
european union.png

EVO DRAIN FLOORS

VOGI EVO series of floor drains consist of 12 different models. Every version consist a different main body construction (horizontal, vertical or horizontal double). A trap (dry or wet) and telescope with stainless steel grate. The set include a waterproofing membrane.

Floor drains EVO

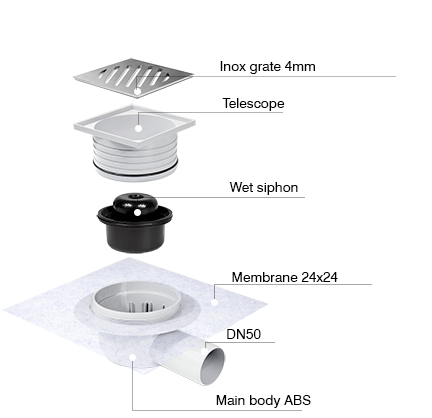

HOW THE EVO DRAIN FLOOR IS BUILD?

  • Horizontal outlet

  • Wet siphon

  • Inox grate

  • Isolate membrane 24 x 24

X1B

  • Horizontal outlet

  • Dry siphon

  • Inox grate

  • Isolate membrane 24 x 24

X2B

  • Vertical outlet

  • Wet siphon

  • Inox grate

  • Isolate membrane 24 x 24

Y1B

  • Vertical outlet

  • Dry siphon

  • Inox grate

  • Isolate membrane 24 x 24

Y2B

  • Horizontal double

  • Wet siphon

  • Inox grate

  • Isolate membrane 24 x 24

Z1B

  • Horizontal double

  • Dry siphon

  • Inox grate

  • Isolate membrane 24 x 24

Z2B

  • Horizontal outlet

  • Wet siphon

  • Tile in grate

  • Isolate membrane 24 x 24

X1C

  • Horizontal outlet

  • Dry siphon

  • Tile in grate

  • Isolate membrane 24 x 24

X2C

  • Vertical outlet

  • Wet siphon

  • Tile in grate

  • Isolate membrane 24 x 24

Y1C

Y2C

  • Vertical outlet

  • Dry siphon

  • Tile in grate

  • Isolate membrane 24 x 24

  • Horizontal double

  • Wet siphon

  • Tile in grate

  • Isolate membrane 24 x 24

Z1C

  • Horizontal double

  • Dry siphon

  • Tile in grate

  • Isolate membrane 24 x 24

Z2C

DIFFERENCE BETWEEN SPHONS

WET SIPHON

DRY SIPHON

Designed for interior application where frequent use of the drain is present, such as bathrooms. As water is collected it creates natural barriers which prevent bad odours from entering the building.

Designed for use in areas where water is only present at irregular intervals such as boiler rooms, basement, garages or aoutdoors. Foul odours are stopped by the sealed flap which only opens in the moment when water is present. This type of siphon can also be used in places where temperatures fall below zero.
